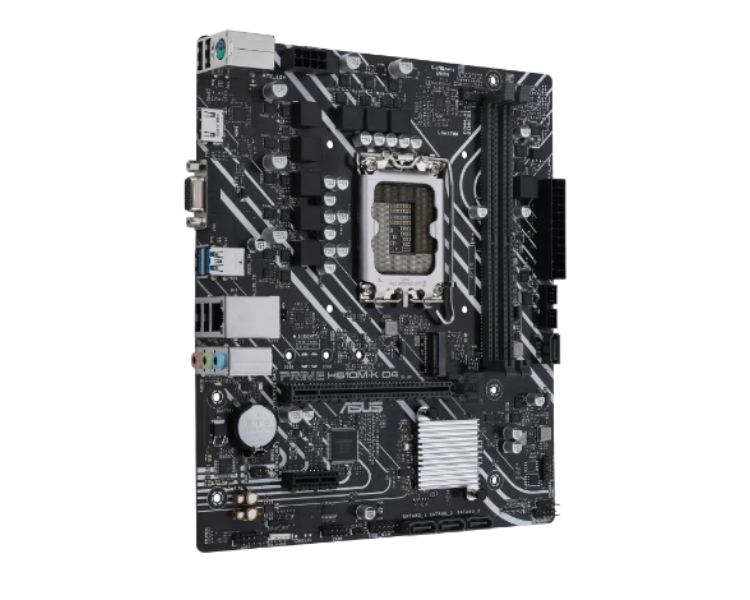

Asus PRIME H610M-K D4 - Placa base

ASUS Prime H610M-K D4: Placa base micro-ATX Intel® H610 (LGA 1700) con DDR4, PCIe 4.0, ranura M.2, Realtek 1 Gb Ethernet, HDMI®, D-Sub, puertos USB 3.2 Gen. 1, SATA 6 Gbps, conectores COM y RGB

Características principales:

Zócalo Intel® LGA 1700: Compatible con los procesadores Intel® de 12.ª Gen.

Refrigeración completa: Disipador PCH y Fan Xpert.

Conectividad de alta velocidad: ranura M.2 de 32 Gbps, Ethernet de 1 Gb de Realtek y compatibilidad con USB 3.2 Gen. 1.

5X Protection III: Funciones de seguridad hardware para proteger todo el sistema.

Especificaciones Asus PRIME H610M-K D4:

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics
1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

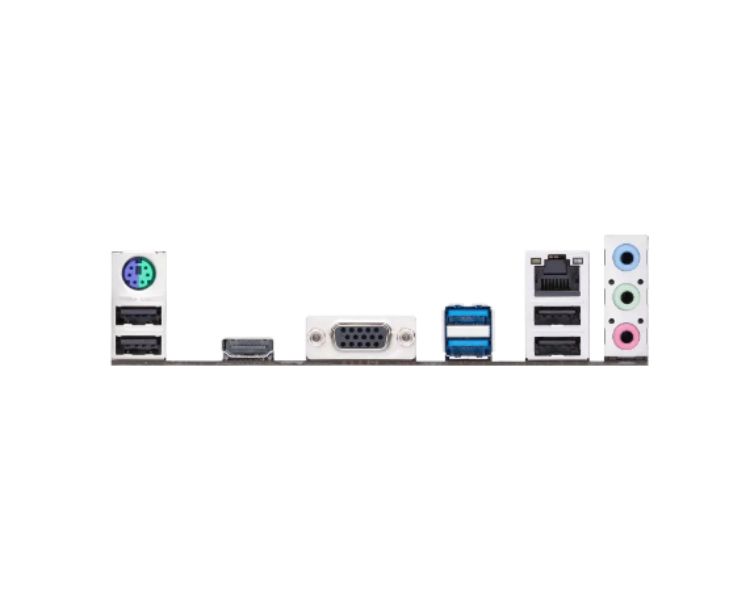

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Form Factor

mATX Form Factor

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Compra Asus PRIME H610M-K D4 barato en antarti.com . Tu tienda de informática online de confianza. Los mejores precios. Si lo encuentras más barato en otro lugar, por favor indícanoslo aquí.

Información adicional:

Garantía 3 años

Asus PRIME H610M-K D4
