Asus WS C422 PRO/SE - Placa base

Equipado con procesador Intel® Xeon® W con memoria ECC
ASUS Control Center: una utilidad de software que proporciona una gestión de TI centralizada cómoda, segura y económica para pequeñas y medianas empresas.
Diseño de nivel de servidor con Intel Gigabit LAN dual incorporado
Velocidades de transferencia de próxima generación: hasta 32 Gbps duales M.2 y U.2, además de conexiones USB 3.1 tipo A y tipo C de hasta 10 Gbps
Máxima potencia gráfica con NVIDIA® SLI™ de 2/3 vías y AMD® Crossfire X™
Disipador térmico VRM ultraeficiente: conjunto de aletas metálicas conectadas a una gran superficie a través de un tubo de calor controla las térmicas C422 para permitir un rendimiento sin límites.

Especificaciones Asus WS C422 PRO/SE:

CPU
Intel® Socket 2066 Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Max Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Build in Intel® C422

Memory
8 x DIMM, Max. 1024GB, DDR4 2933/2666/2400/2133 MHz RDIMM, LR-DIMM Memory *1
Quad Channel Memory Architecture
* Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.

Graphic
ASPEED AST2500 64MB
VGA output support : Header port
Multi-GPU Support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots
48-Lane CPU-
2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 3.0 x4 (x4 mode)

Storage
1 x M.2 x4 Socket 3*2, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3*3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x U.2 connector*2
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Enterprise supports
Intel® Virtual RAID (VROC) support for CPU RAID

LAN
Intel® I210-AT, 2 x Gigabit LAN Controller(s)

Audio
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports
Intel® C422 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Intel® C422 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)

Workstation Feature
ASUS Control Center (ACC)
ASMB9-iKVM for KVM-over-Internet

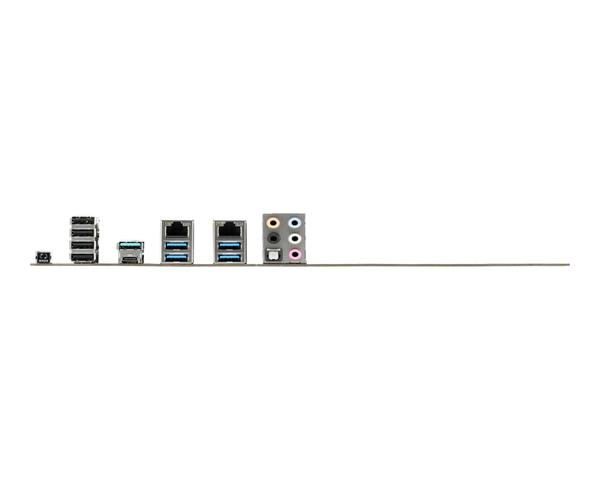

Back I/O Ports
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,
4 x USB 3.1 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback®)
1 x Optical S/PDIF out
1 x USB BIOS Flashback® Button(s)
1 x 8-channel Audio I/O

Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
2 x CPU Fan connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x U.2 connector
3 x System panel connector
1 x Front fan
1 x Rear fan
1 x COM port header
1 x Aspeed VGA header
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x PUMP Fan connector
1x 6-pin ATX 12V Power connector

BIOS
CrashFree BIOS 3
EZ Flash3
F11 EZ Tuning Wizard
ASUS UEFI BIOS EZ Mode
Multi-language BIOS

Form Factor
ATX Form Factor 30.5 cm x 24.4 cm

Environment
Operation temperature: 10* ~ 35*
Non operation temperature: -40* ~ 70*
Non operation humidity: 20% ~ 90% ( Non condensing)

Compra Asus WS C422 PRO/SE barato en antarti.com . Tu tienda de informática online de confianza. Los mejores precios. Si lo encuentras más barato en otro lugar, por favor indícanoslo aquí.

Información adicional:

Garantía 3 años

Asus WS C422 PRO/SE
