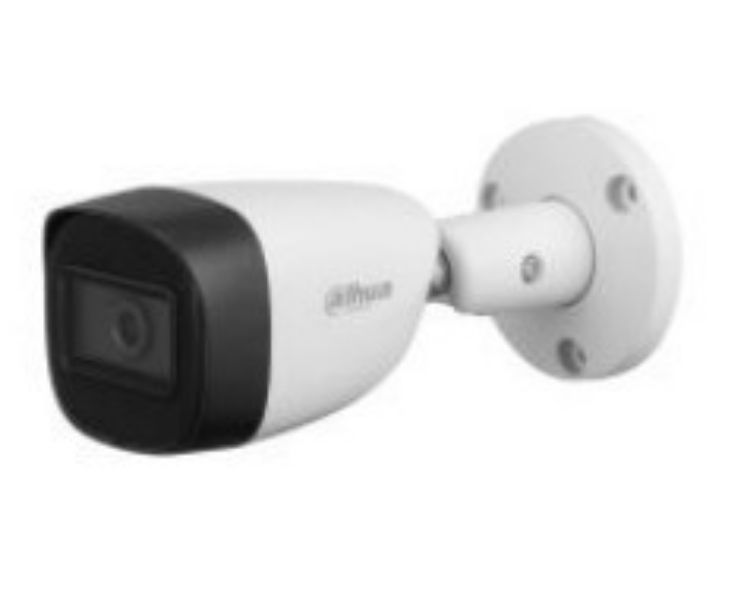

Dahua Cámara vigilancia | Serie Lite, HDCVI , Tipo Bullet, 5MP, Lente fija | DH-HAC-HFW1500CMP-A-POC-0280B-S2 - Videovigilancia

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

3

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: 132° × 111° × 58°

(diagonal × horizontal × vertical)

3.6 mm: 109° × 92° × 48°

(diagonal × horizontal × vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.6 m (5.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.7 ft)

25.4 m

(83.3 ft)

12.7 m

(41.7 ft)

6.4 m

(21.0 ft)

3.6 mm

80 m

(262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;

NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

AHD:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

CVBS:

PAL: 960H;

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Interface

One channel built-in mic

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

PoC (only CVI)/12V±30% DC

Power Consumption

Max 3.7W (12V DC, IR on); PoC (AF)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

166.6 mm × 69.7 mm × 70.0 mm（6.56" × 2.75" ×

2.75"）

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.43 kg (0.95 lb)
